• Keep The Power Off During Installation (Before You Cover The Panel)
• Check The Terminal Connections Before Wiring
• Connect The Device In Accordance With The Relevant Diagrams
• Ensure That No Bare Wires From The Terminals In Case Of Electric Shock
1. L Terminal Connect To Live Wire
2. N Terminal Connect To Neutral Wire
3. L1 L2 L3 Terminals Connect To Light Wire
4. 2 Way Terminal Connect To Another 2 Way Terminal
Warning: Don’t Switch On The Appliance Before Installation Is Finished Completely
1. Open The Box, Take Out The Parts, Distinguish The Front And Back Of The Metal Plate
(Note: The Side With CE And RoHS Is The Back Side)
2. Assemble Insert Parts And Metal Plate
(Note: Push The Insert Parts Into Metal Plate From The Front Side)
3. Follow The Wiring Instructions To Connect The Wires
4. Screw To Fix The Switch To The Wall Box
5. Push The Glass Panel Onto The Device And Finish The Installation
Note: Only The Metal Plate Notch Side Match WithThe GlassPanelNotchSide, They Can Be Assembled Together Successfully
Warning: Keep The Power Off Until You Finish The Installation Otherwise The Switch May Fail

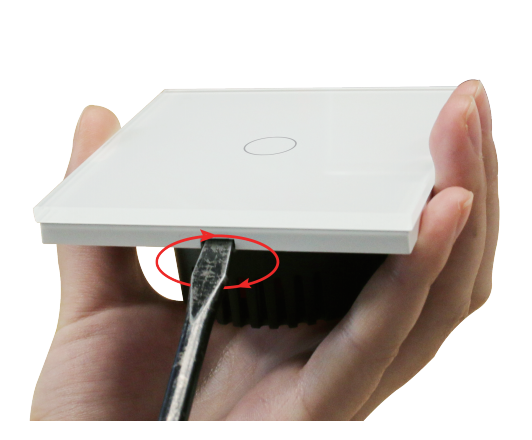

Separate The Glass Panel And Metal Plate From The Groove With A Screwdriver (Just In Case The Glass Panel Is Scratched)
1-Way Light Switch Is Used To Control A Light Only From 1 Position

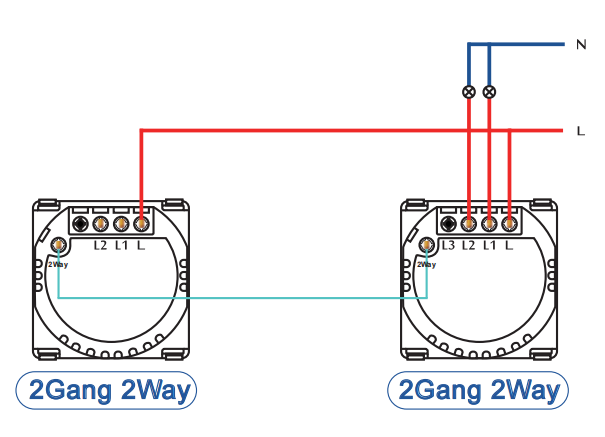

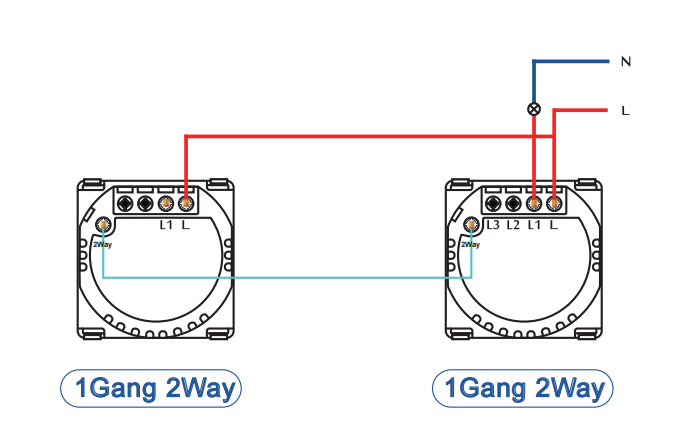

2-Way Light Switch Is Used To Control A Light From 2 Different Position Like Upstairs And Downstairs
(Note: BSEED Brand 2 Way Light Switch Can Only Work Together With The Same Brand 2 Way Light Switch. It Can Not Match With Other Brand’s Switch)

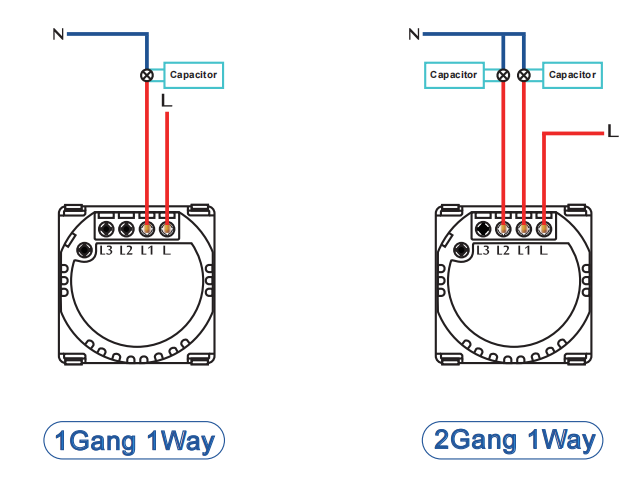

1 Way Dimmer Switch Is Used To Adjust The Brightness Of The Lights Only From 1 Position
(Note: The Capacitor Should Be Installed To The Light Bulbs)
2 Way Dimmer Switch Is Used To Adjust The Brightness Of The Lights From 2 Different Position Like Upstairs And Downstairs

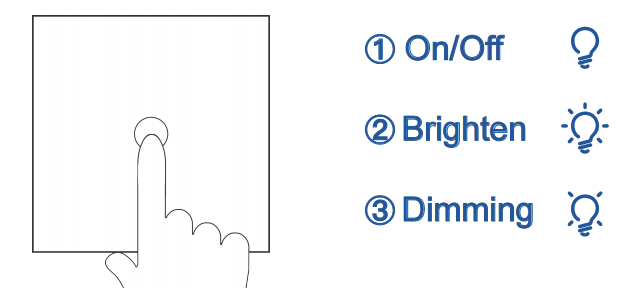

The Switch Is Activated By Pressing And Holding On The Front Panel To Adjust The Lighting Intensity Of The Lights Bulbs
① Click The Middle Button To Turn On/Off
② Long Press The Middle Button To Brighten Your Light Bulbs
③ Release And Long Press Again The Middle Button To Dim The Light Bulbs
Tip: To Avoid Any Damage May Leads To The Glass Panel and The Plastic Border, Carefully Lift Up The Screwdriver While The Removing Process
The Dimmer Switch Has A Memory Function Which Keeps The Level Of Dim. When You Turn 'OFF' Then 'ON' It Remembers The Adjustment Intensity By Decreasing And
Increasing The Lights Bulbs
① Incandescent Bulb,
② Dimmable LED Bulb
① Fluorescent Bulb
② Compact Fluorescent Bulb
③ Normal LED Bulb
④ Energy Saving Bulb

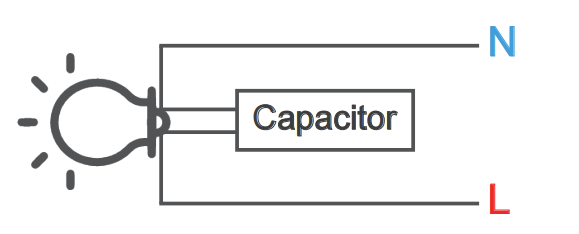

Capacitor: Designed To Eliminate The Current Leak And Stop The Flickering. It Installed To The Light Bulb As Below:
Input： AC 110-240V
Operating Freq：50/60Hz
Life Time: 100,000Times
RF Frequency: 433.92MHz
Capability Allowance: -15%~+10%
Ambient Humidity: ≤93%
Operating Temp: -20℃ to 70℃
Power Consumption: ≤0.02W
