ADBMZ001 Smart Roller Blind User Manual
User Manual
English
Model: ADBMZ001
Product Name: Smart Roller Blind
Platform: Tuya Smart · Smart Life App
The Smart Roller Blind Robot upgrades bead-chain roller blinds into smart roller blind devices that can be controlled through the Smart Life App. After installation and calibration, you can use your phone to open, stop, and close the roller blind, adjust its position by percentage, and set schedules, scenes, or automations.
This product uses the Zigbee 3.0 communication protocol and must be used with a Tuya Zigbee gateway. After the gateway is connected to the home network, the device can support remote control, scenes, and automation through the Smart Life App. Specific available gateway models, region support, and voice services are subject to the Smart Life App page and sales channel instructions.
App control: Supports opening, stopping, and closing
Percentage control: Supports 0–100% target position adjustment
Travel calibration: Calibrates the open and closed endpoints through App guidance after first installation
Open/close direction setting: Supports adjusting the closing direction based on installation orientation
Schedule: Supports up to 4 local weekly schedules
Battery level display: Supports battery level reporting
Charging status: Supports not charging, charging, and fully charged status
Local buttons: Supports local open, close, stop, and factory reset
Smart Roller Blind Robot main unit × 1
Screws × 2
Foam pads × 2
Type-C charging cable x1

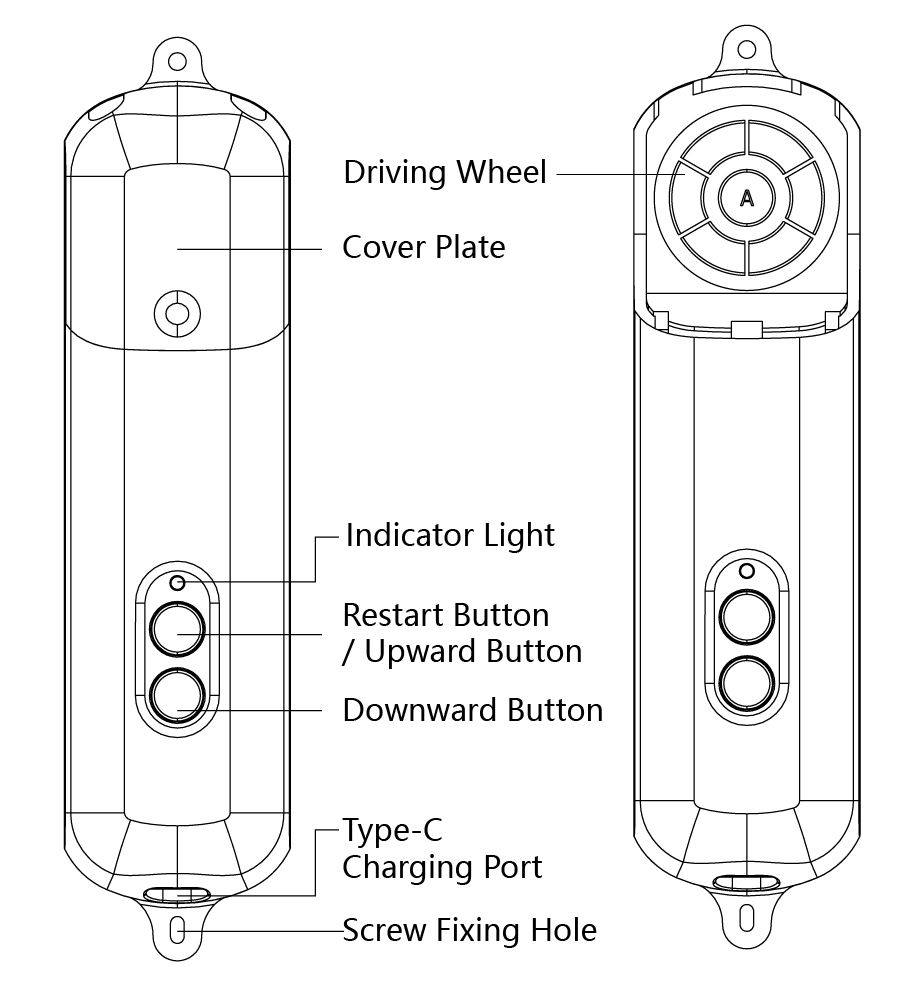

Drive wheel: Connects with the bead chain and drives the roller blind to open or close
Type-C charging port: Used to charge the device
Blue indicator light: Shows pairing, operation feedback, and charging status
Open button: Click to open; click during operation to stop
Close button: Click to close; click during operation to stop
Button near the indicator light: Press and hold for about 5 seconds to reset / enter addable mode
Use a Type-C charging cable to connect the device, and use a DC 5V/1A power adapter to charge the product. Do not use visibly damaged cables or adapters.
Addable / pairing: Blue light flashes
Charging: Blue light breathes / flashes; actual effect is subject to the physical product
Fully charged: Blue light stays on
Not charging and no operation: Blue light is off

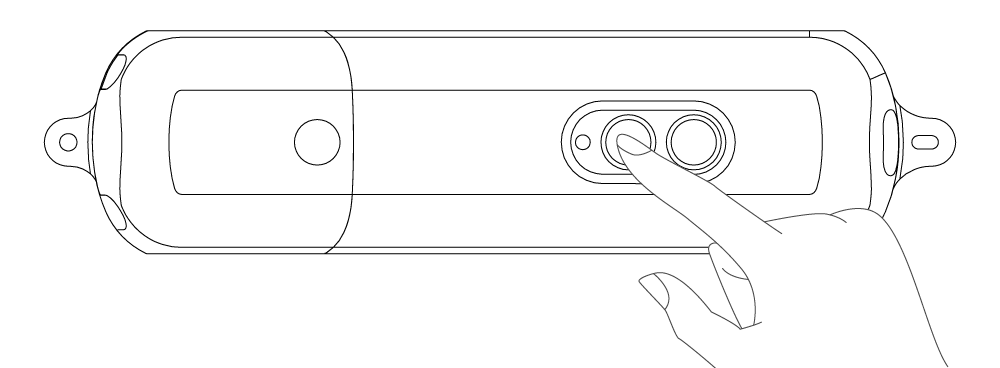

The device may be in sleep mode when shipped. Before first use, press and hold the button near the indicator light for about 5 seconds until the indicator lights up or the blue light starts flashing. The device is now activated and can be added to the Smart Life App.
Search for “Smart Life” in the mobile app store and install the App. After installation, follow the App instructions to log in or create an account.
This product is a Zigbee device and cannot be added directly through phone Bluetooth. Before adding it, make sure:
• A usable Tuya Zigbee gateway has been prepared and added;
• The Zigbee gateway has been connected to the Smart Life App;
• The gateway is online;
• The device is close to the gateway during first network joining.

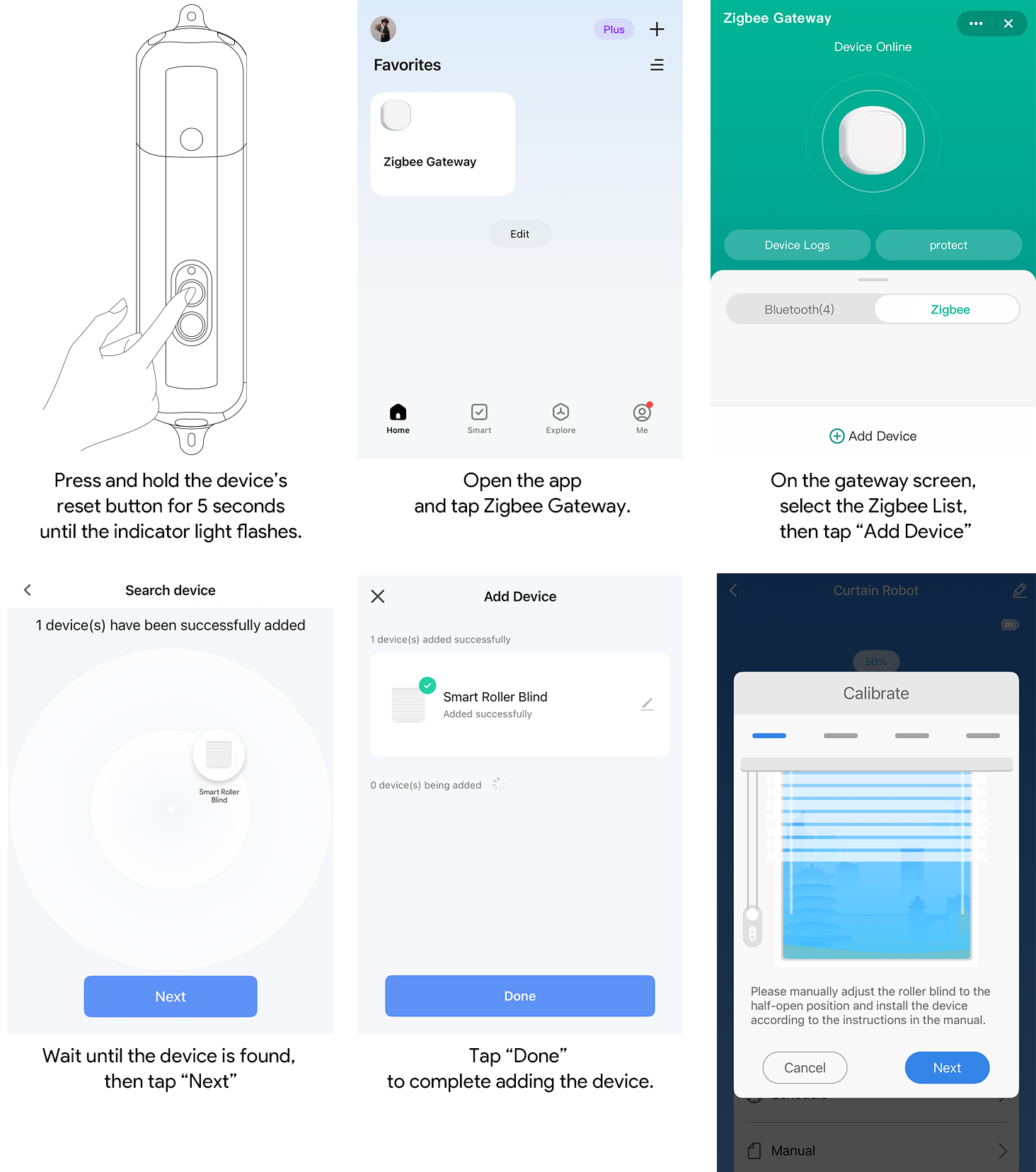

Press and hold the button near the indicator light for about 5 seconds until the blue light starts flashing. A flashing blue light means the device is in addable mode.

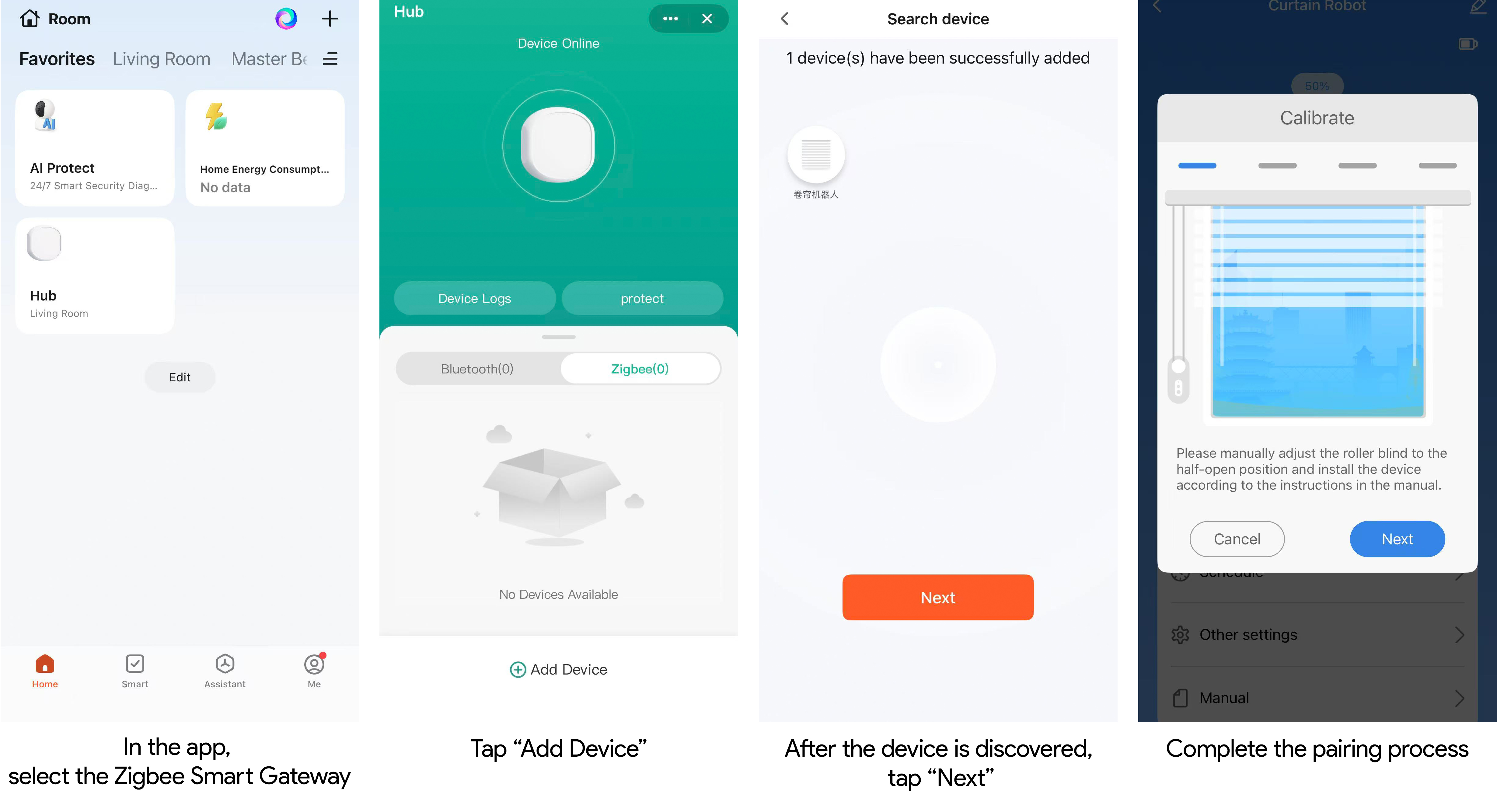

1. Open the Smart Life App and enter the page of the added Zigbee gateway.
2. On the gateway page, tap “Add Sub-device” or “Add Device”.
3. Confirm that the Roller Blind Robot blue light is flashing.
4. Follow the App instructions to search for and add the device.
5. After successful adding, enter the device panel and complete motion calibration.
Before installation, confirm the following conditions:
• The roller blind uses a bead-chain structure;
• This product does not support cord-type roller blinds;
• The bead chain moves smoothly, with no obvious jamming, tangling, or loosening;
• The installation surface is clean, flat, and free of dust;
• The product drive wheel can connect tightly with the bead chain to avoid slipping during operation;
• There are no obstacles in the roller blind movement path.

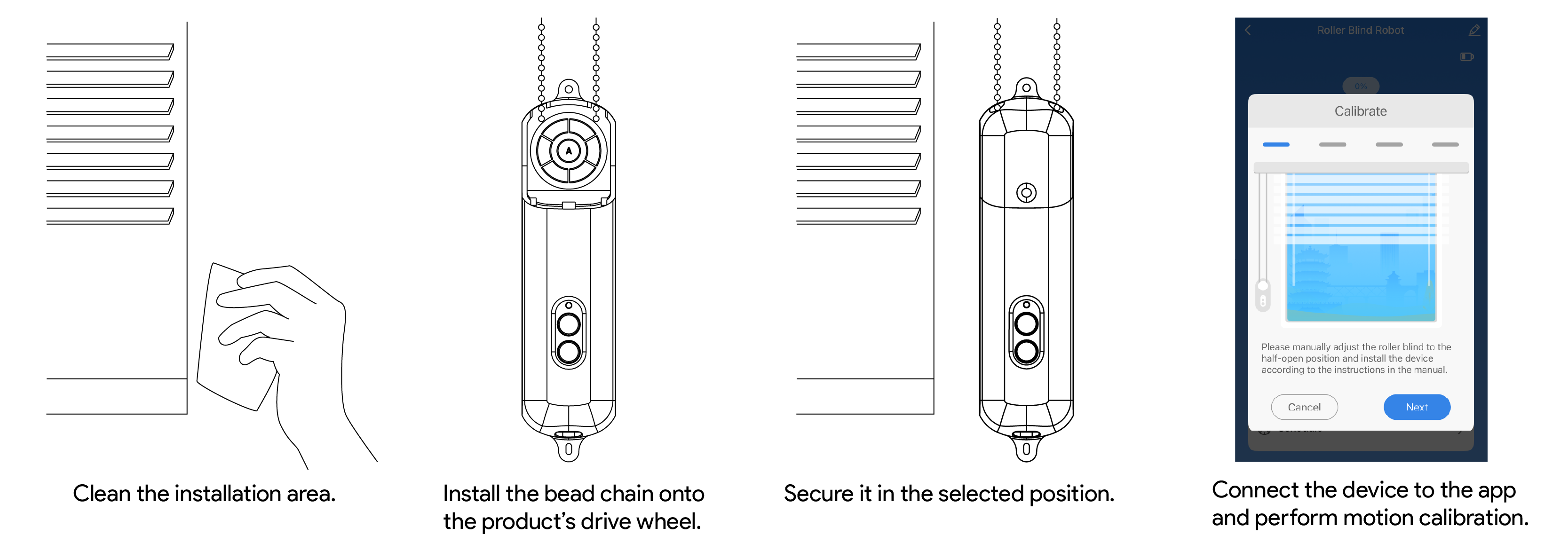

1. Unbox and check whether the main unit, screws, foam pads, and other accessories are complete.
2. Clean the installation position and make sure the surface is clean and dust-free.
3. Connect the product drive wheel with the bead chain and confirm the connection is tight.
4. Use the included screws or fixing accessories to securely install the main unit in the selected position.
5. After installation, enter the device panel in the Smart Life App and perform motion calibration.
After first installation or reinstallation, complete motion calibration before use. Before calibration, percentage position and schedule control may be inaccurate.

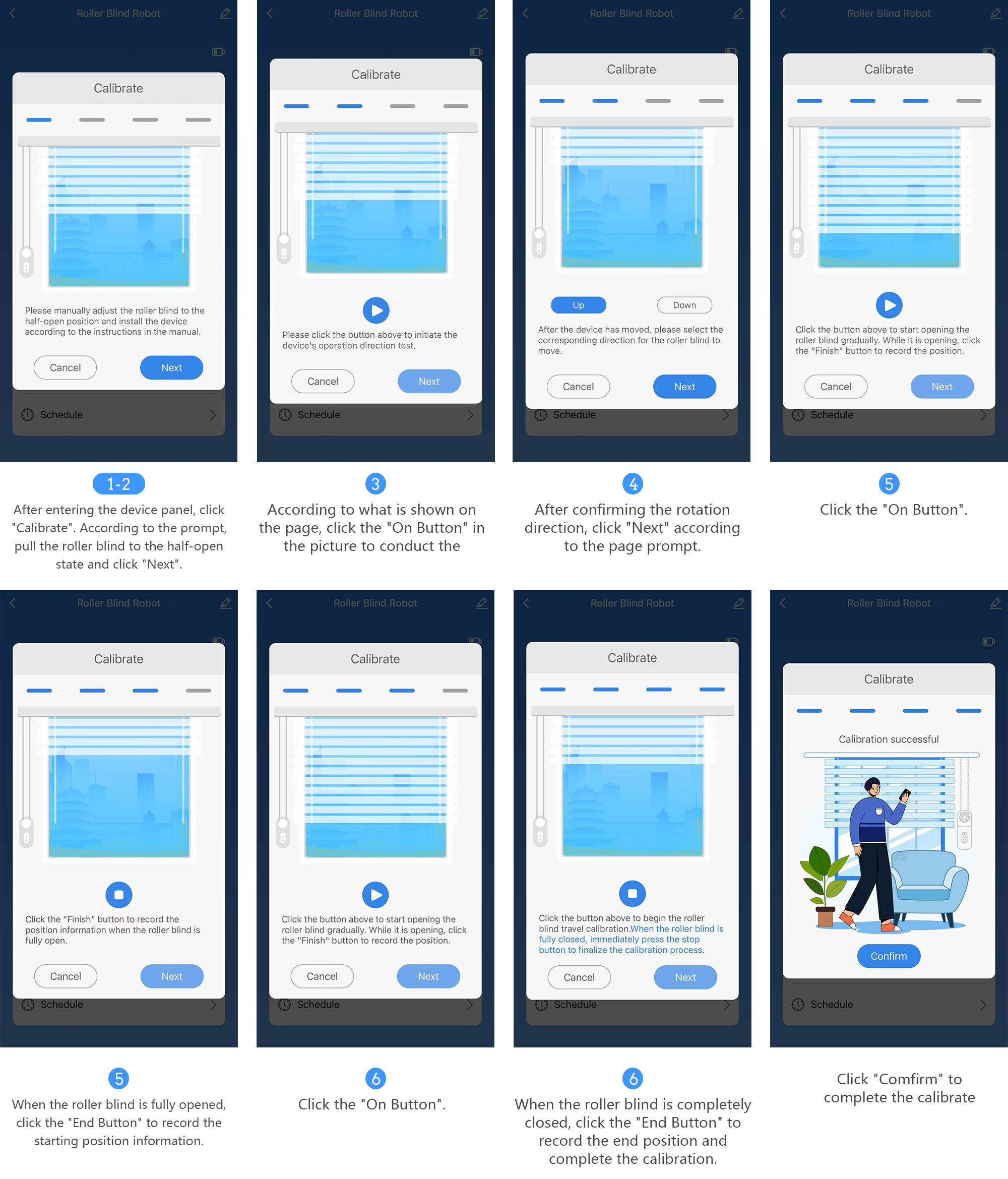

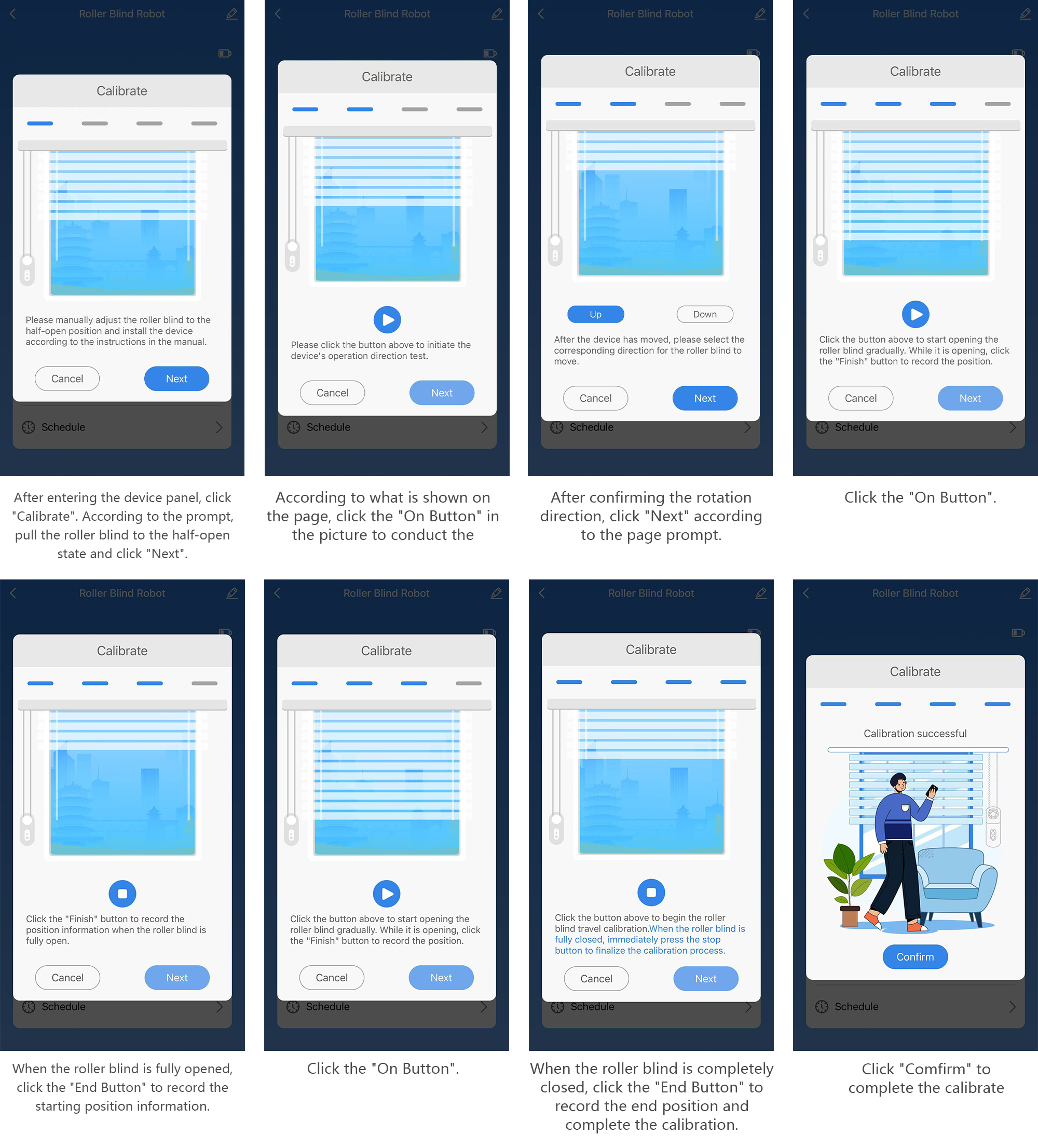

1. Enter the device panel and tap “Motion Calibration”.
2. Follow the page prompt to pull the roller blind to a half-open position, then tap “Next”.
3. Tap the “Open Button” on the page to test the direction.
4. After confirming the rotation direction, tap “Next”.
5. Tap the “Open Button”. When the roller blind is fully opened, tap the “End Button” to record the start position.
6. Tap the “Start Button”. When the roller blind is fully closed, tap the “End Button” to record the end position.
7. After calibration is complete, you can use open, close, percentage control, and schedule functions normally.
If calibration fails or the running position is inaccurate, check:
• Whether the roller blind is blocked by foreign objects;
• Whether the bead chain is slipping, loose, or tangled;
• Whether the device is installed securely;
• Whether the roller blind moves smoothly.
• After troubleshooting, perform motion calibration again.
Note: Note: After installation and calibration are complete, do not manually pull the roller blind or bead chain, so as not to affect travel position and calibration results.
After entering the device panel, you can use the following controls:
Open: The roller blind moves in the opening direction
Stop: The roller blind stops the current action
Close: The roller blind moves in the closing direction
Percentage adjustment: Adjust the roller blind to a specified percentage position
Open/close direction: Set the closing direction according to the installation orientation
Schedule: Set up to 4 weekly repeat tasks
Battery level: View the current battery level
Charging status: View not charging, charging, and fully charged status
This manual temporarily uses the following logic: 0% means fully open, and 100% means fully closed. If the final App panel displays the logic differently, follow the actual panel.
Click the open button: Open; click during operation to stop
Click the close button: Close; click during operation to stop
Press and hold the button near the indicator light for about 5 seconds: Restore factory settings / re-enter addable mode

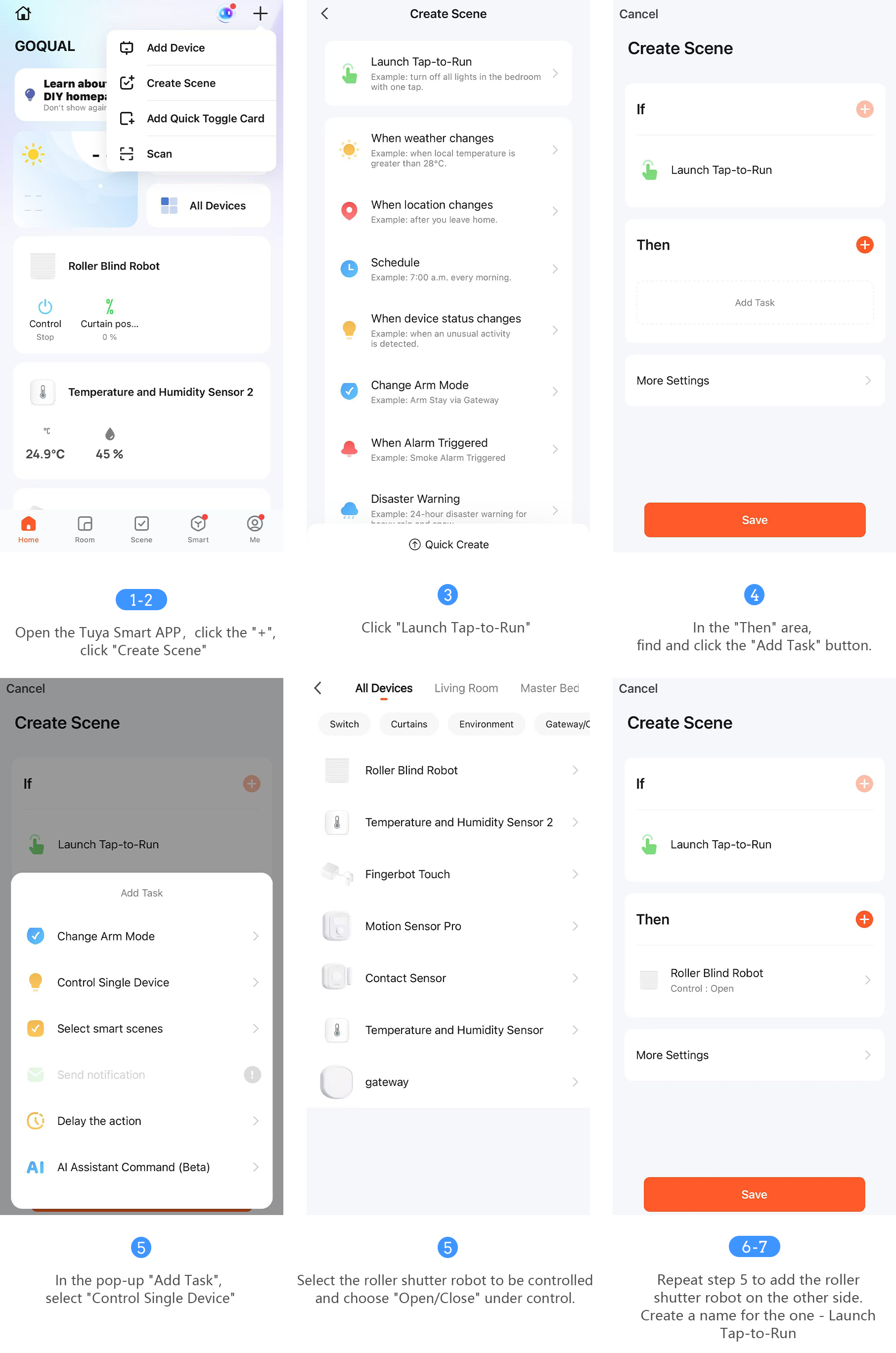

After calibration is complete, you can create scenes or automation in the Smart Life App, such as:
• Open or close the roller blind at a fixed time every day;
• Execute “fully open roller blind” or “fully close roller blind” with one tap;
• Use the Tuya Zigbee gateway for remote scene control.
This product is a Zigbee device and must connect to the Smart Life App through a Tuya Zigbee gateway. After the gateway is online, the device can support:
• Viewing and controlling the device remotely through the Smart Life App;
• Creating more stable scenes and automation;
• Voice control after associating supported voice services in the App settings.
Product model: ADCBZI02
Product name: Smart Roller Blind Robot
English product name: Smart Roller Blind Robot
Dimensions: 209 × 52 × 38 mm
Weight: 260 g
Wireless protocol: Zigbee 3.0
Battery type: 3.7 V lithium battery
Battery capacity: 2000 mAh
Charging port: Type-C
Power input: DC 5V/1A
Compatible type: Bead-chain roller blinds; cord-type roller blinds not supported
Opening/closing method: Vertical opening
Operating temperature: 0°C~45°C / 32°F~113°F
Operating humidity: 0~95% RH, non-condensing
Cloud platform: Tuya Smart IoT Platform
• This product is not waterproof. Do not use it in humid, water-splashed, or condensation-prone environments.
• The product contains a lithium battery. Do not use, charge, or store it in high-temperature environments.
• Do not obstruct the movement path while the device is running, otherwise the internal mechanical structure or motor may be damaged.
• Do not disassemble, modify, or repair this product by yourself.
• If the device has abnormal heating, odor, water ingress, shell damage, or abnormal operation, stop using it immediately.
• This product is only for auxiliary control of household roller blinds and must not be used in safety-critical scenarios involving medical, industrial, firefighting, or emergency escape functions.
• The package and accessories contain small parts. Keep them out of reach of children.
• Children are not recommended to install, charge, or operate this product by themselves.
• Prevent children from pulling the roller blind bead chain or playing with moving parts of the device.
• Use a compliant 5V/1A power adapter.
• Do not use damaged, aged, or loose charging cables.
• Keep the environment ventilated while charging, away from heat sources and flammable materials.
• Do not throw the product into fire, squeeze it, puncture it, or disassemble the battery.
• Use a trusted Smart Life App account owned by you or your family member to bind the device.
• For multi-user use, it is recommended to authorize through the App’s home member feature instead of directly sharing account passwords.
• To unbind or transfer the device, first remove the device in the App, then press and hold the button for about 5 seconds to make the device enter addable mode again.
Confirm that the Tuya Zigbee gateway is online, the device blue light is flashing, and the device is close to the gateway before trying again. If it still cannot be added, press and hold the button near the indicator light for about 5 seconds until the blue light flashes again, then add the device again.
Confirm that the Tuya Zigbee gateway has been connected to the home network and remains online. Zigbee devices need to communicate with the Smart Life App through the gateway. Remote control may be unavailable when the gateway is offline.
Enter the open/close direction or motion calibration settings in the device panel, adjust the direction according to the page prompts, and recalibrate.
Perform motion calibration again. Before calibration, confirm that the roller blind is not blocked, the bead chain does not slip, and the main unit is installed securely.
Stop operation immediately and check whether the roller blind movement path, bead chain, or installation position has obstacles, tangles, or looseness. After resolving the issue, recalibrate.
Check whether the Type-C charging cable and 5V/1A adapter are normal and whether the connector is firmly inserted. If there is still no response after replacing the cable and adapter, stop using the product and contact after-sales service.
