User Manual

Product Overview

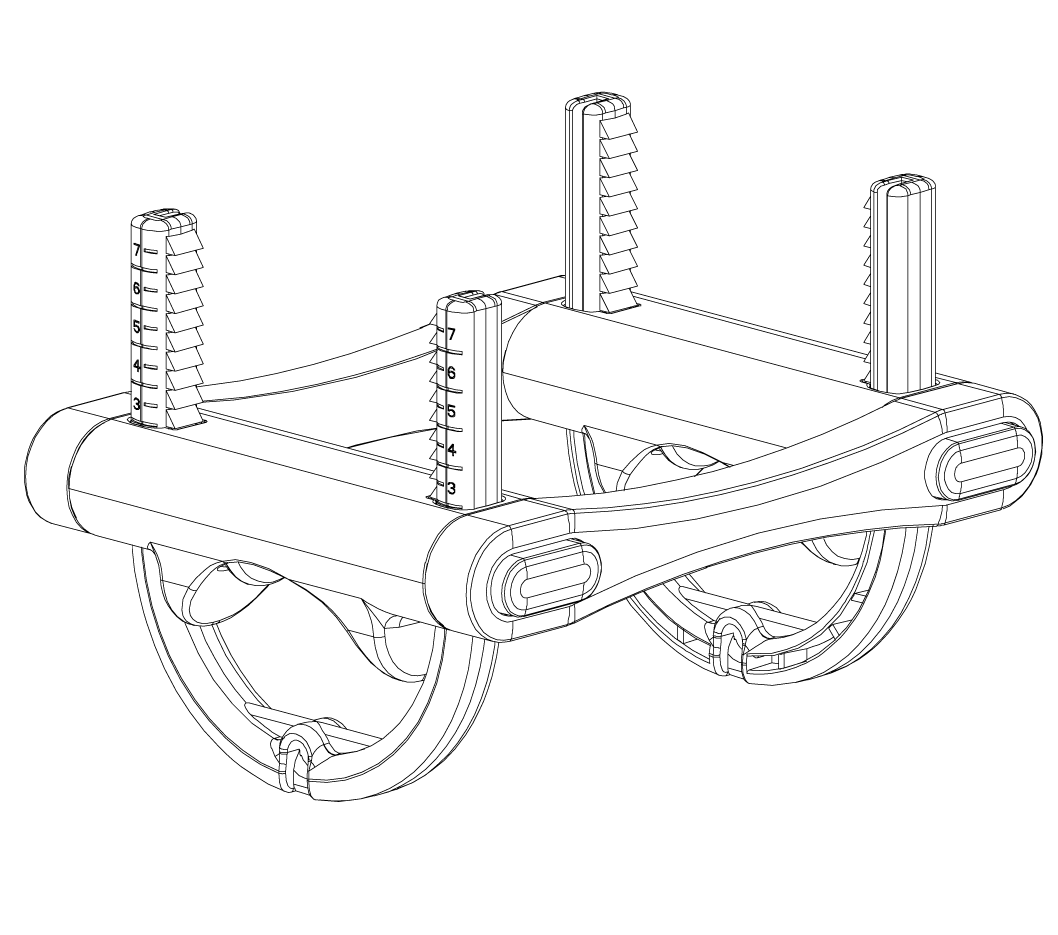

The Curtain Robot Roman Rod Accessories are designed to optimize the smart automation experience of Roman rod curtains, compatible with both through-type and hang-through curtain fabrics. This accessory balances aesthetics and functionality, offering flexible installation solutions for different types of curtain fabrics, enhancing the convenience and comfort of smart home living.

Installation Requirements

Curtain Fabric Type Instructions

Grommet Curtains: For grommet curtains, the minimum distance between two adjacent Roman rings must be greater than 100mm.

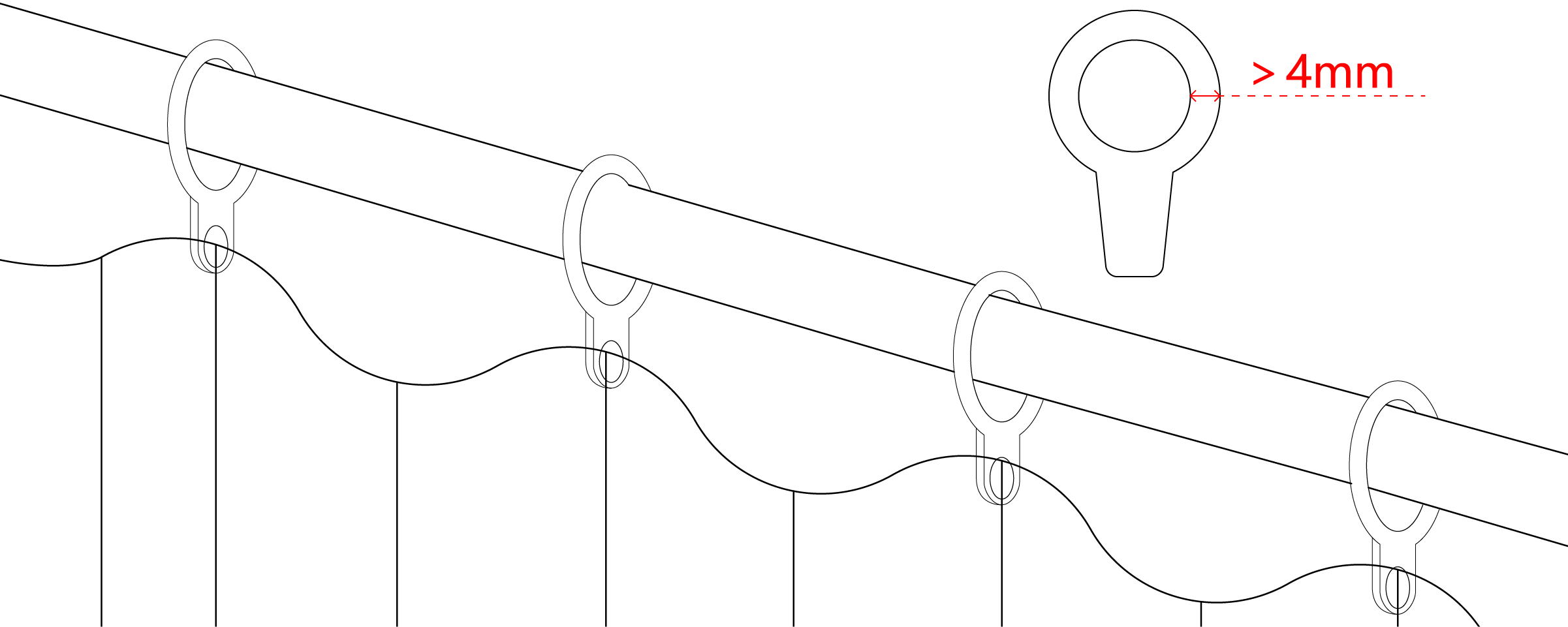

Pinch Pleat Curtains: For pinch pleat curtains, the thickness of the hang ring must be greater than 4mm.

Roman Rod Diameter: The diameter should be between 25-38mm, or the circumference should be between 79-100mm. Either option is acceptable

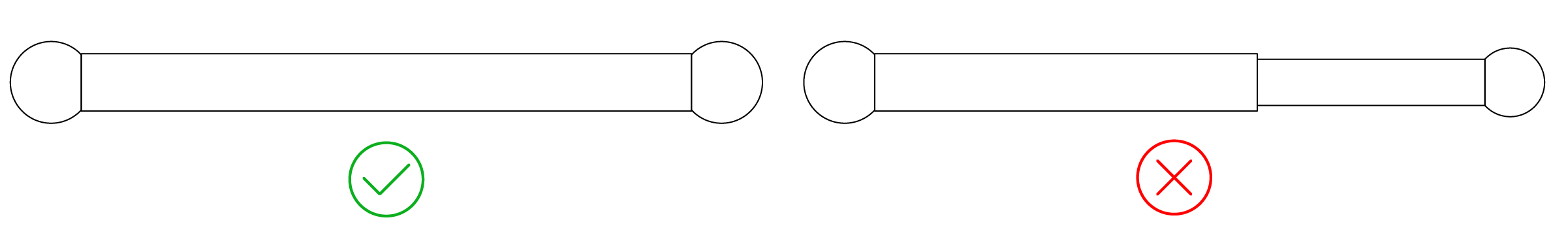

Note: This product is only suitable for Roman rods with uniform thickness on both sides and not for telescopic Roman rods with varying thicknesses at the ends.

Product Installation

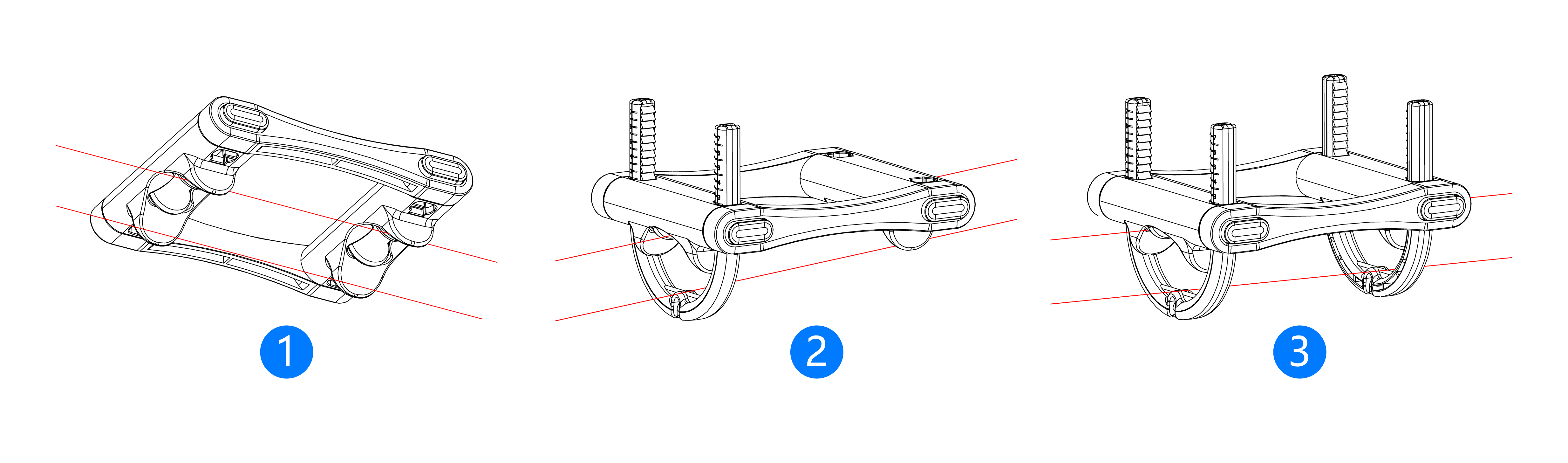

Accessory Installation

1. When placing the Roman rod accessory, ensure the rollers are facing downward and place it steadily on the Roman rod.

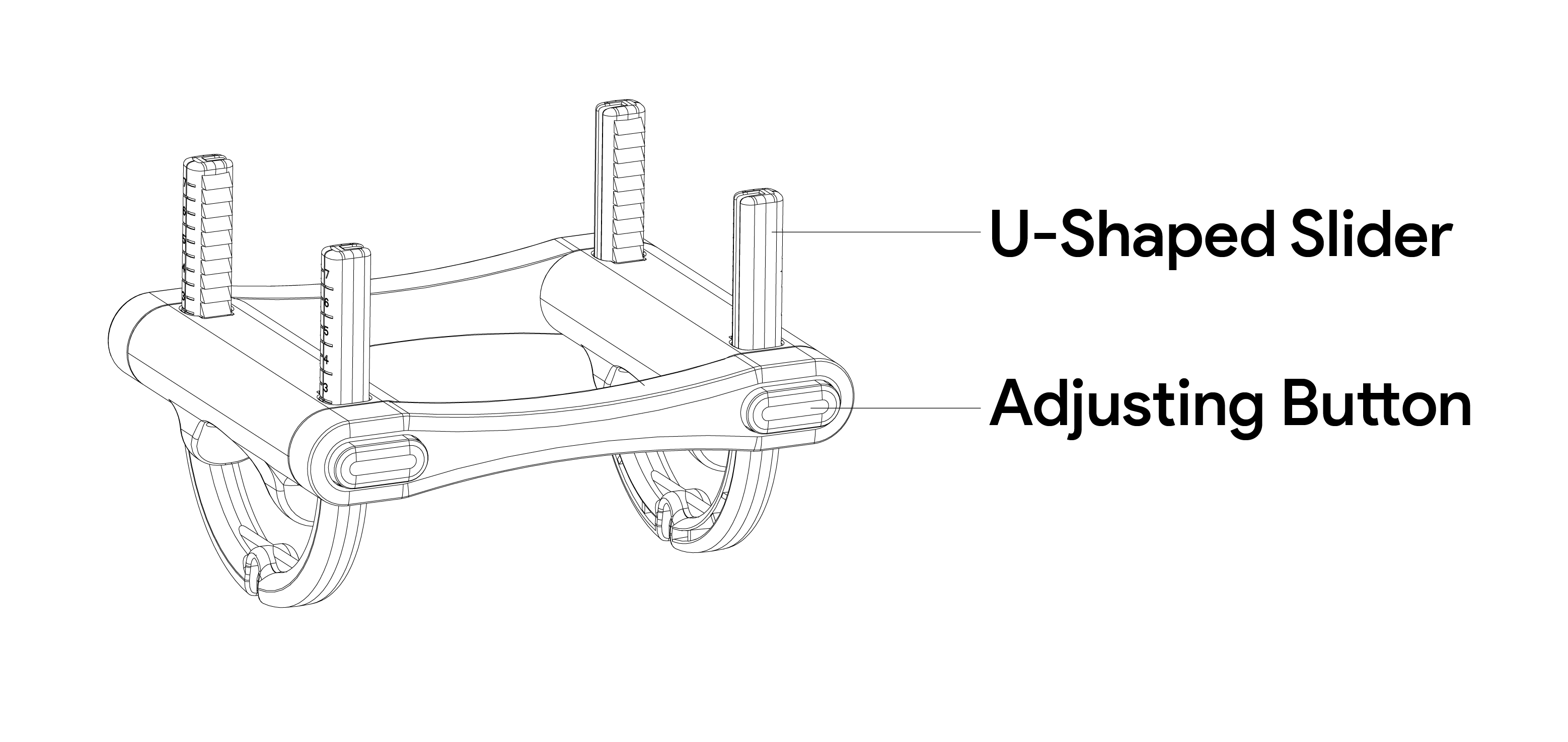

2. Align the reserved holes on the main body accurately, press the adjustment button, and install the U-shaped slider.

3. Fix one side first, then secure the other end. Both sides must be firmly locked to ensure that the accessory does not move left or right after installation, achieving a stable connection.

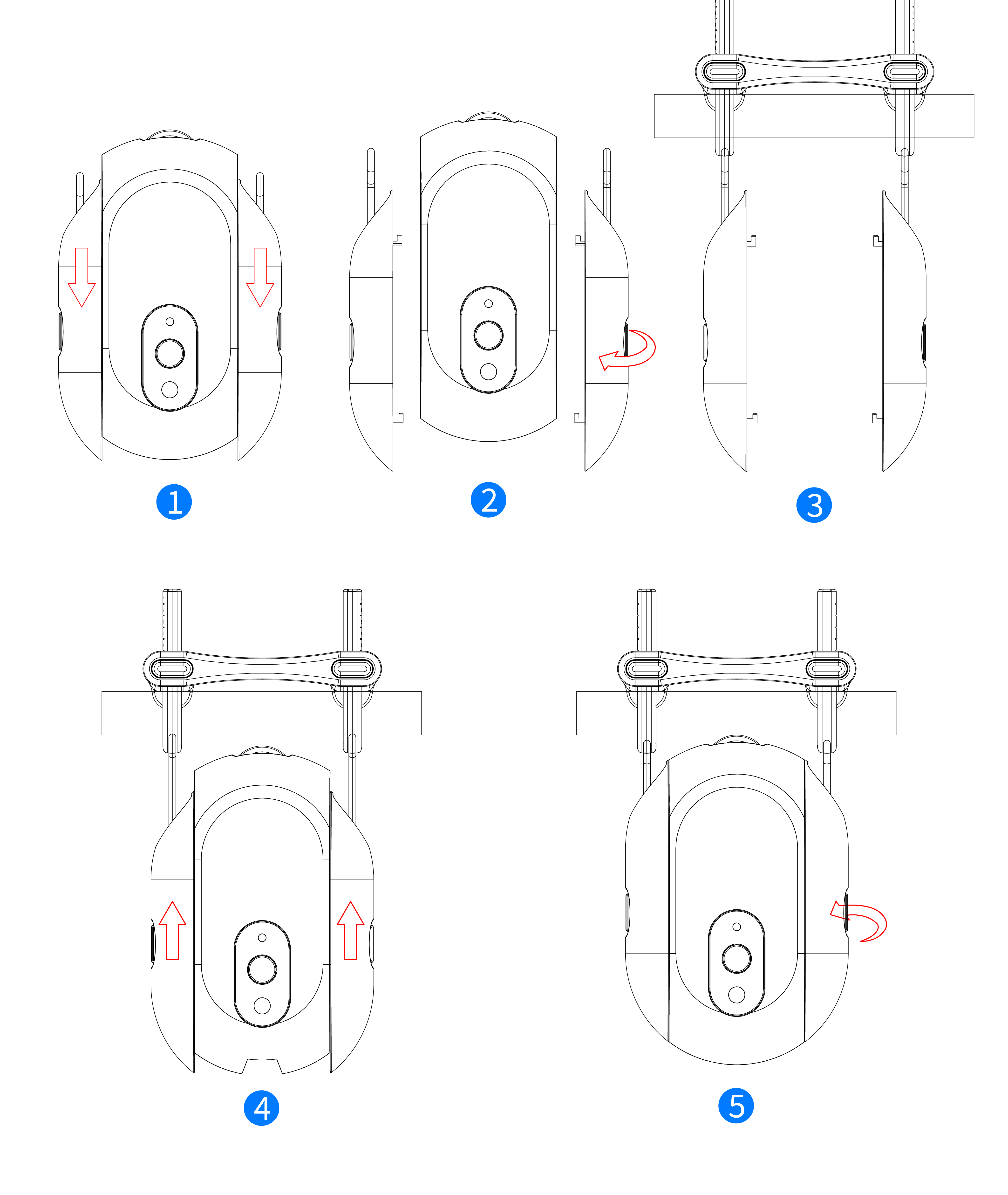

Curtain Robot Installation

1. Slide the curtain robot main body downwards to remove the hooks on both sides.

2. Adjust the hooks to the top position using the side knobs.

3. Install the hooks on both sides to the corresponding curtain rings.

4. Combine the curtain robot main body with the hooks on both sides.

5. Adjust the side knobs to ensure the top rollers of the curtain robot fit closely with the curtain track.

Tip: During installation, tilt the curtain robot to the left or right to adjust the knobs on both sides for proper tightness.

Specifications

Main Body Dimensions: 102*80*25mm

Main Body Weight: 56g

U-shaped Slider Dimensions: 70*60*8mm

U-shaped Slider Weight: 8g

Package Contents: Main Body x1, U-shaped Slider x2

‍
