ADFBB601 Fingerbot Pro User Manual
User Manual
English
Model: ADFBB601
Product name: ADAPROX Fingerbot Pro
Connection: Bluetooth Low Energy (BLE)
Platform: Powered by Tuya, Smart Life App
Fingerbot Pro is a smart button pusher that adds app control, schedules, voice control with a gateway, and touchless triggering to physical buttons you already use. It can press wall switches, coffee maker buttons, access panels, water heater buttons, air-conditioner panels, and similar low-voltage household controls without rewiring or replacing the original device.
Compared with a standard button pusher, Fingerbot Pro adds an RGB Halo light ring and upgrades the top control area to touchless sensing. Move your finger close to the top surface, about 1 cm away, to trigger a press without touching the device. This is useful around elevator buttons, shared panels, kitchens, bathrooms, and other places where you may prefer a no-touch operation.
This Bluetooth model can be controlled nearby from the Smart Life App. For remote control, cloud automations, Amazon Alexa, or Google Assistant, use a compatible Tuya Bluetooth gateway, sold separately.

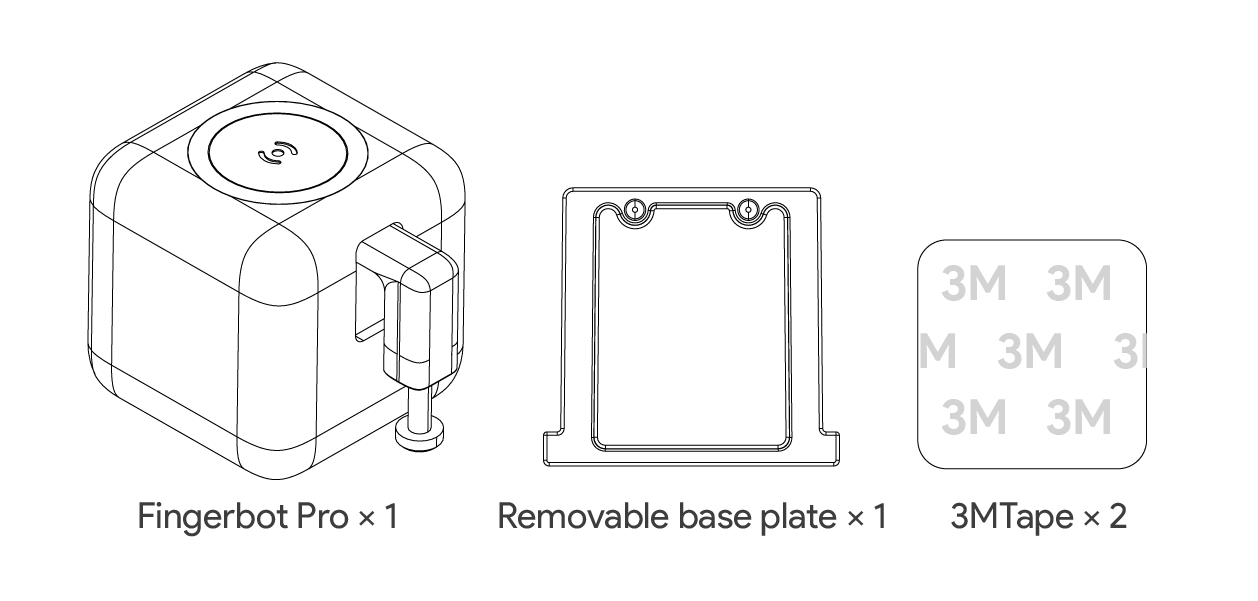

• Fingerbot Pro main unit x 1
• Removable base x 1
• High-strength double-sided adhesive pad x 2
Note: Type-C charging cable and power adapter are not included. Use a standard Type-C cable and a 5 V / 1 A power adapter.

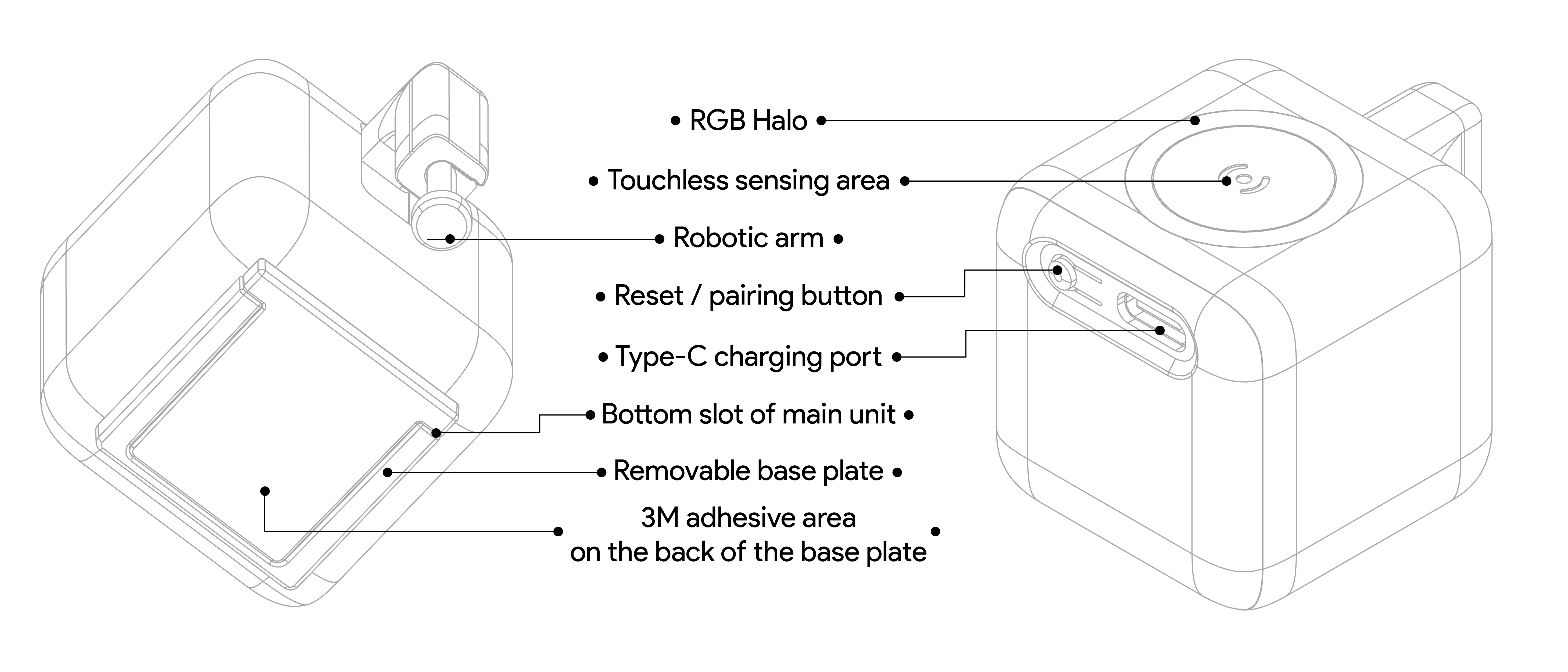

1. RGB Halo: 6 full-color LEDs for touch feedback, charging status, press feedback, and custom light effects
2. Press arm: Up to 12 mm travel, with adjustable press and release positions
3. Touchless sensing area: The top surface supports touchless triggering and direct touch
4. Reset / pairing button: Press and hold for 5 seconds to enter pairing mode; the blue light flashes quickly
5. Type-C charging port: Use a 5 V/1 A power adapter
6. Bottom slot: Locks the main unit onto the removable base
7. Removable base: Stays on the target device so the main unit can be removed for charging
8. Adhesive area: Attach the base to a wall plate, panel, appliance, or other flat surface
Before first use, charge Fingerbot Pro with a Type-C cable and a 5 V / 1 A power adapter. A full charge takes about 3 hours. Charging light effects can be customized in the RGB Halo page of the Smart Life App control panel.
The removable-base design makes charging easier after installation. Pull the main unit off the base, charge it on a table, then snap it back onto the base after charging. The base can remain attached to the target button.
1. Open the Smart Life App and tap the "+" button on the home page.
2. Select "Add Device".
3. Press and hold the reset / pairing button on Fingerbot Pro for 5 seconds, until the blue light flashes quickly.
4. The app will scan for nearby devices. Follow the in-app steps to finish pairing.
For the first installation, keep the main unit and the base assembled. This lets you use the press arm as an alignment guide and helps prevent the base from being installed in the wrong direction.
1. Clean the target button or switch surface thoroughly. Wait until the surface is completely dry.
2. Keep the main unit attached to the base. Remove one liner from the adhesive pad and attach the pad to the adhesive area on the base.
3. Remove the outer liner. Press the assembled main unit and base onto the target position, aligning the press arm with the center of the button.
4. Press firmly for 30 seconds.
5. Wait 24 hours before regular use so the adhesive can reach its best strength.
6. If the app asks for calibration, follow the on-screen calibration steps after the adhesive has settled.
In the Smart Life App, open the control panel and go to "Motion Settings".
Click: A single press, such as a coffee maker start button, doorbell, or panel button - Press down 85%, hold 0 seconds
Switch: Rocker switches or flat switches with clear on / off positions - Press down 80%, release to 30%
Program: Custom multi-step actions, such as press and hold, wait, then press again - User-defined
Adjustable motion parameters may include:
Press depth: 51% to 100% - How far the press arm moves down
Release position: 0% to 50% - How high the arm returns in switch mode
Hold time: 0 to 10 seconds - How long the arm stays pressed in click mode
Touch control: On / off - Whether touchless sensing can trigger the current action
Reverse switch: On / off - Reverses up / down direction for some rocker switches
Smart Life App nearby control: Tap the main control button in the app panel - Bluetooth nearby control
Touchless trigger: Move a finger close to the top surface to trigger the current motion - No
Local schedules: Countdown, weekly schedules, and program sequences stored on the device - No
Remote control and voice control: Use a compatible Tuya Bluetooth gateway for remote operation, Alexa, or Google Assistant - Gateway required

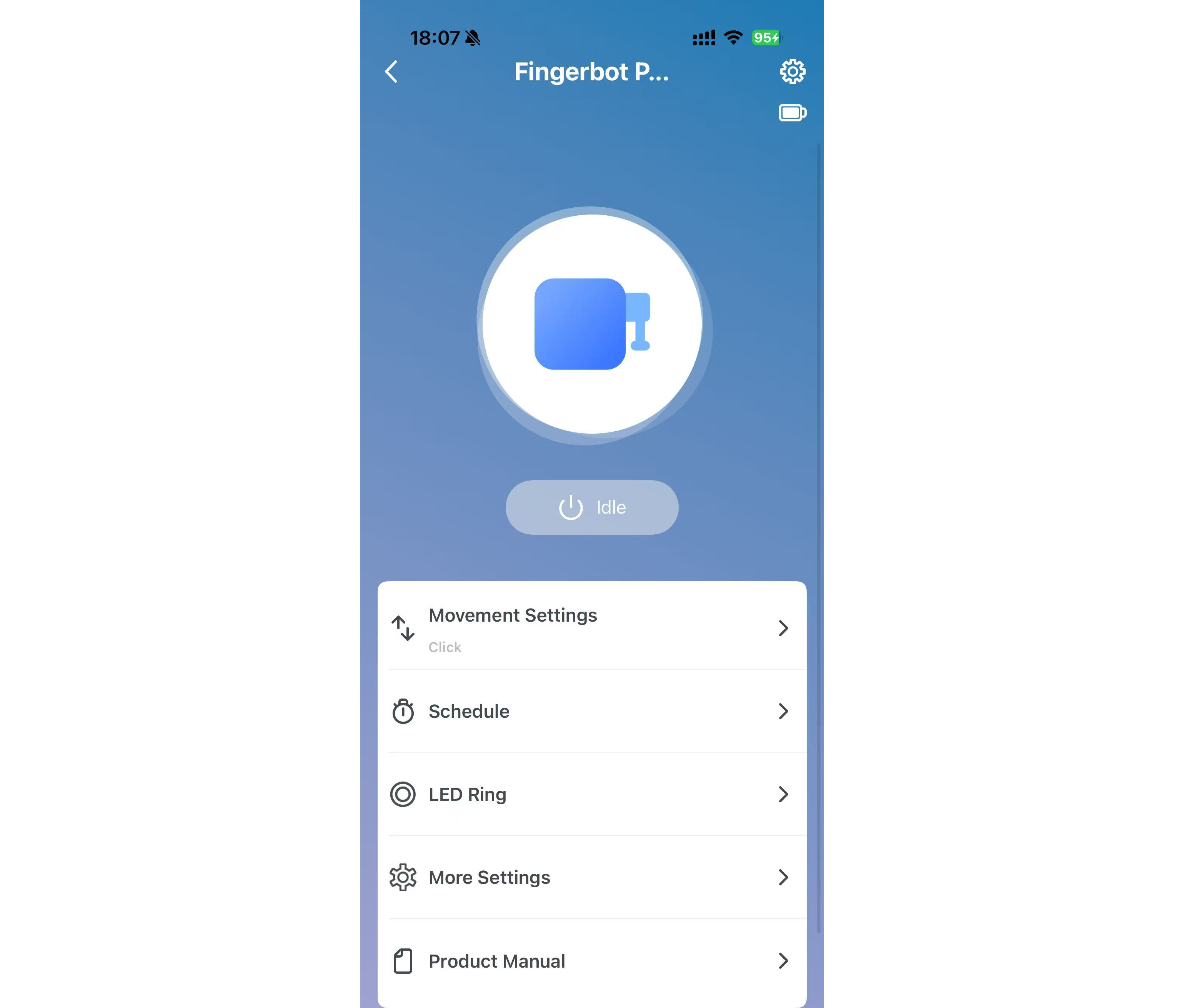

After the app connects over Bluetooth, the main panel shows the device status, battery level, motion settings, schedules, RGB Halo settings, advanced settings, and manual entry.

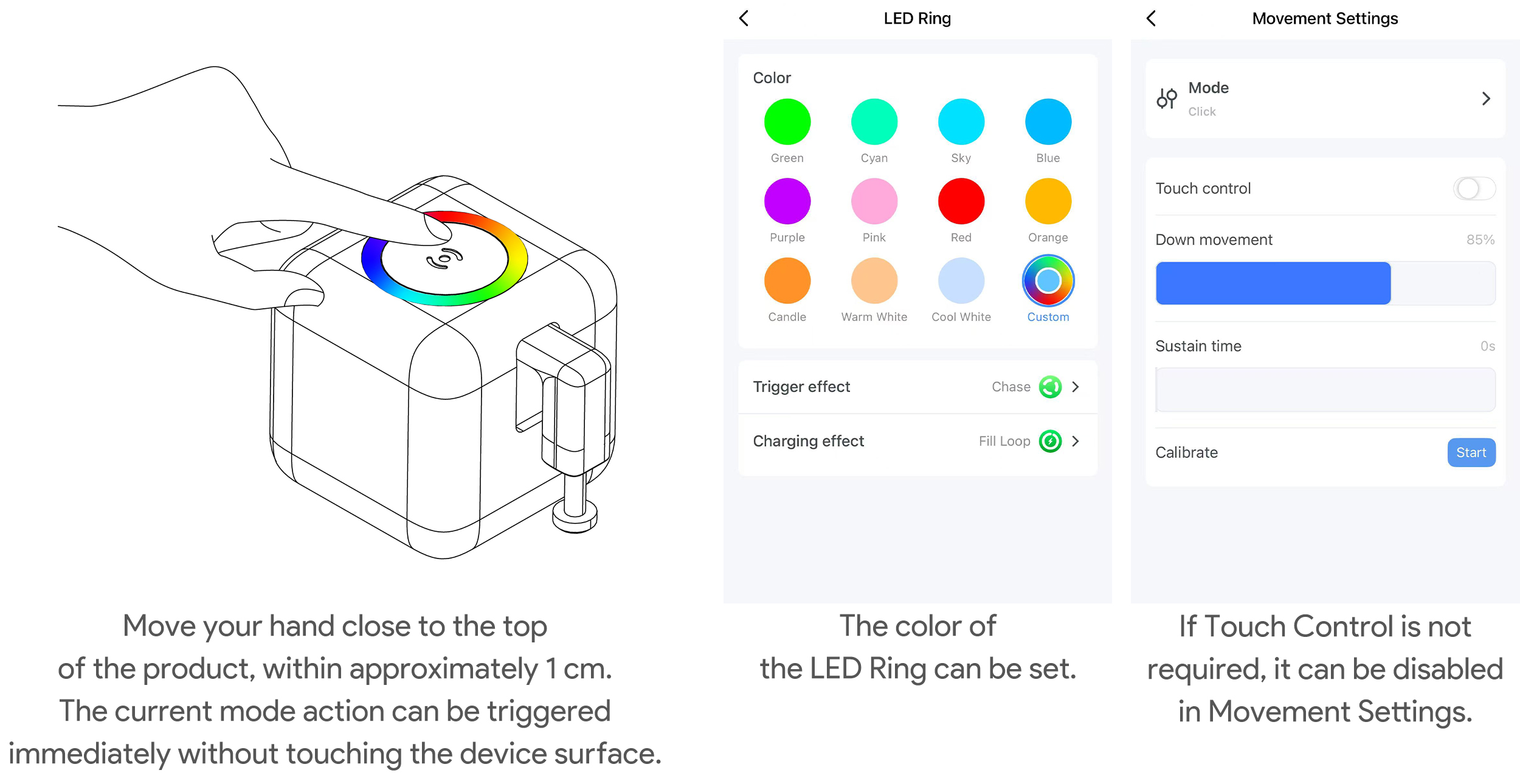

Touchless sensing is enabled by default. Move your finger close to the top surface, about 1 cm away, to trigger the current motion. The RGB Halo lights up as feedback. You can turn off touch control in Motion Settings if accidental triggers are possible in your installation location.
Open "Timer" in the app panel to create:
• 1 countdown timer
• Up to 4 weekly schedules
Schedules are stored on the device and continue to run locally after the phone disconnects. For best long-term time accuracy, open the app panel regularly to sync the device time, or use a compatible Bluetooth gateway.

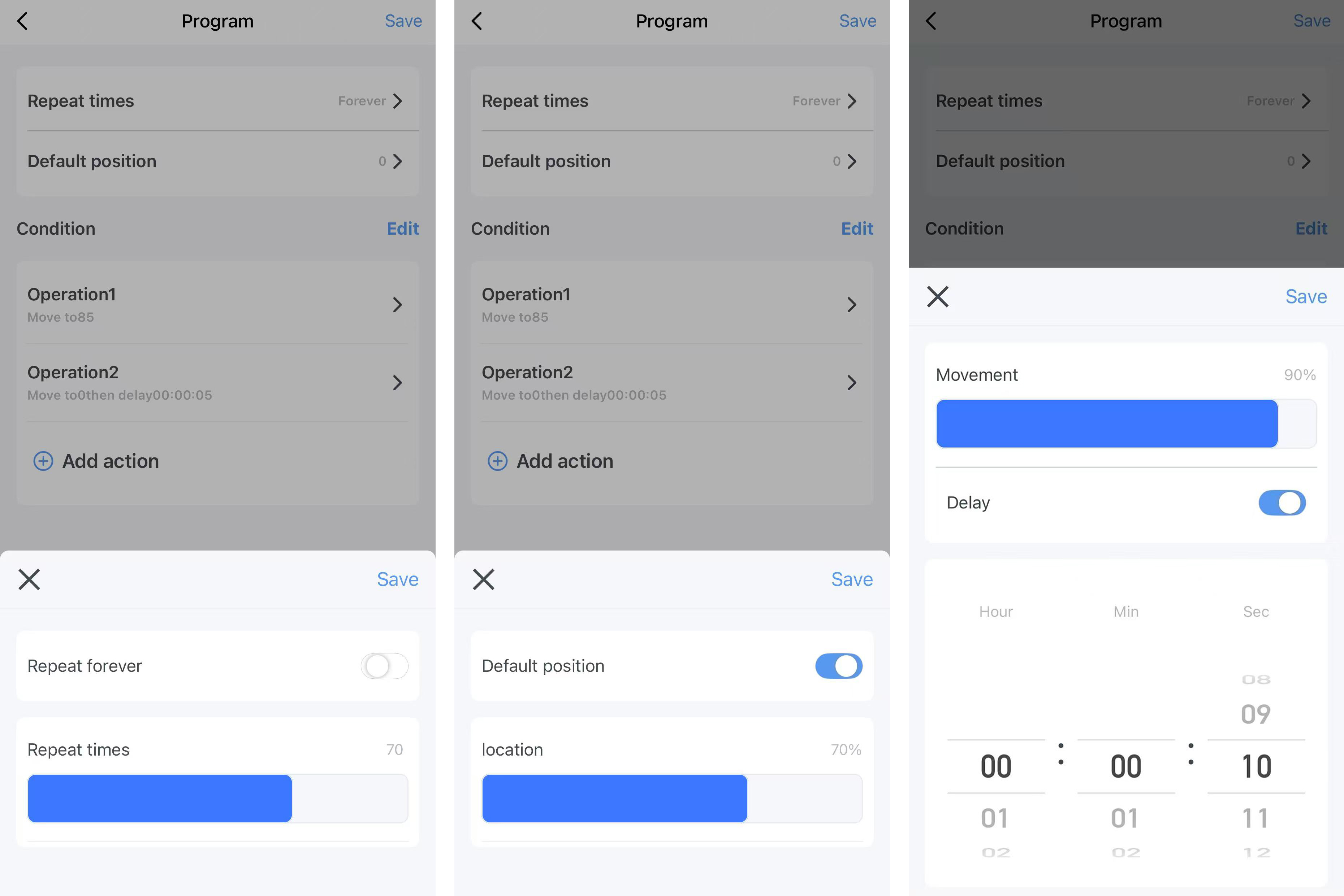

In Program mode, you can define up to 8 action steps. Each step can set:
• Position: 0% to 100%
• Delay before the next step: 0 seconds to 8 hours
The sequence can run 1 to 100 times or loop continuously. You can also set the final arm position after the sequence ends.
Example: for a coffee maker that needs one long press, a wait, and one short press, build the whole sequence once and run it manually or by schedule.
The RGB Halo page lets you customize:
• Halo color: 12 preset colors and custom HSV color selection
• Press effect: constant on, chasing light, heartbeat, and other available effects
• Charging effect: breathing, flowing, filling, and other available effects
Effect names and available options may vary slightly by app panel version. Use the names shown in your Smart Life App.
Fingerbot Pro can be used by Bluetooth nearby control without a gateway. To control it when you are away from home, or to use Amazon Alexa / Google Assistant, add a compatible Tuya Bluetooth gateway.

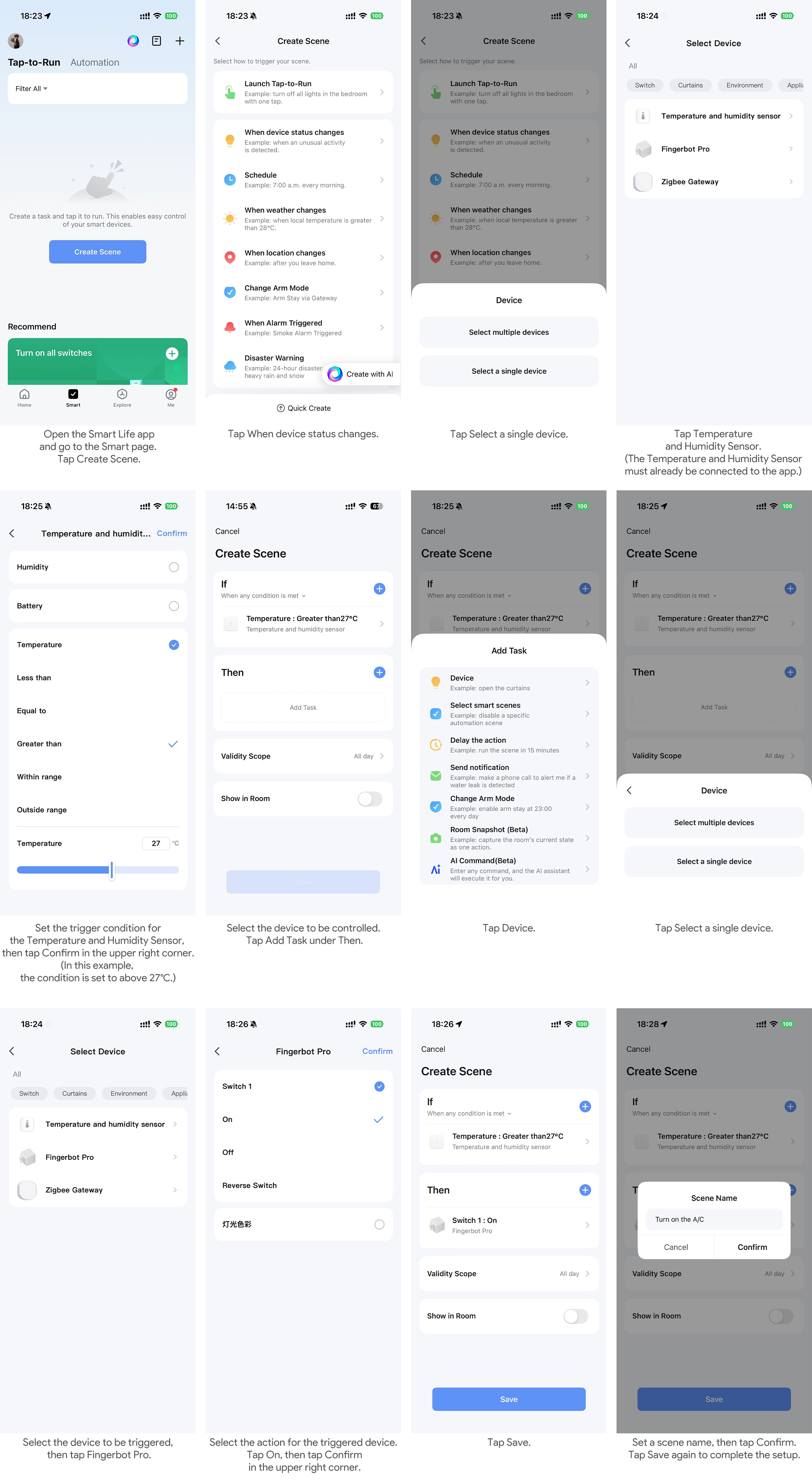

After the gateway is added to your home Wi-Fi network and linked with Fingerbot Pro, you can:
• Control the device remotely in the Smart Life App
• Create cloud automations in the Smart Life App
• Link the Smart Life account with Amazon Alexa or Google Assistant, subject to regional availability
Model: ADFBB601
Dimensions: 36 x 39.5 x 47 mm
Weight: 42 g
Maximum arm travel: 12 mm
Maximum pushing force: 10 N
Wireless protocol: Bluetooth BLE 5.0
Cloud platform: Tuya IoT Platform
Charging port: Type-C
Power input: DC 5 V / 1 A
Battery: 500 mAh built-in rechargeable lithium battery
Charging time: About 3 hours
Operating temperature: -10 ℃ to 50 ℃
Operating humidity: 80% RH or less
Light ring: 6 full-color LEDs, RGB Halo
Touch method: Touchless sensing, also supports direct touch; sensing distance about 1 cm
Connection path: Nearby phone Bluetooth control / Tuya Bluetooth gateway relay, sold separately
Installation: Removable base with high-strength double-sided adhesive
• This product is not waterproof. Do not install it underwater or in wet environments.
• This product contains a lithium battery. Do not use or store it in humid or high-temperature environments.
• Keep the press arm clear while the device is moving. Blocking the arm may damage the motor.
• Do not disassemble or repair the product yourself. Contact the seller for service.
• This product is intended only for assisting low-voltage household physical buttons. Do not use it for safety-critical controls, including medical equipment, industrial controls, gas valves, emergency elevator controls, fire controls, or maintenance circuits.
• Assisted elevator button pressing means normal floor-selection buttons only. Do not use this product on emergency stop, fire service, maintenance, or other safety-control circuits.
• This product is not a substitute for a safety device.
• Keep adhesive pads and other small parts away from children.
• Children under 12 should not install, charge, or use this product without adult supervision.
• Do not allow children to play with the Type-C port or charging cable.
Q1: The pairing light does not flash. What should I do? A: Make sure the device has power. Press and hold the reset / pairing button for at least 5 seconds. If the light still does not turn on, charge the device for 10 minutes and try again.
Q2: The press arm cannot press my button. A: Increase the resistance setting in Advanced Settings, check that the press arm is aligned with the center of the button, then run calibration again if needed.
Q3: The base falls off after installation. A: Clean the surface thoroughly and wait until it is dry. Press the adhesive firmly for 30 seconds and wait 24 hours before regular use.
Q4: Can I remove the main unit from the base? Will it become loose? A: Yes. The main unit is designed to be removed by hand for charging. The latch is designed for repeated normal use.
Q5: My weekly schedule becomes inaccurate after a while. A: Open the Smart Life App panel regularly to sync time, or add a compatible Tuya Bluetooth gateway so the device can sync time automatically.
Q6: How do I turn off the light effects? A: In the RGB Halo page, set both the press effect and charging effect to "Off".
Q7: Can more than one phone control the same Fingerbot Pro? A: Yes. Use the Smart Life App family member sharing feature. After the device is connected through a Bluetooth gateway, family members can also use remote control and supported voice assistants.
Q8: Can I use Alexa or Google Assistant without a Bluetooth gateway? A: No. Voice assistants require the device to stay online through a compatible Tuya Bluetooth gateway.
