Temperature and Humidity Sensor（Zigbee）EN
User Manual
English
This temperature and humidity sensor needs a Linkoze gateway to connect to Zigbee network.
You can search "Smart Life" in the mobile application store to install the App
Slide down the rear cover to open the device case. Then put two batteries into the product.
Use a pin to long press the reset button for at least 5 seconds and release, the device is ready to be paired when the LED flashes.
Open the app and choose your existing hub, enter the Search device page and add your device.

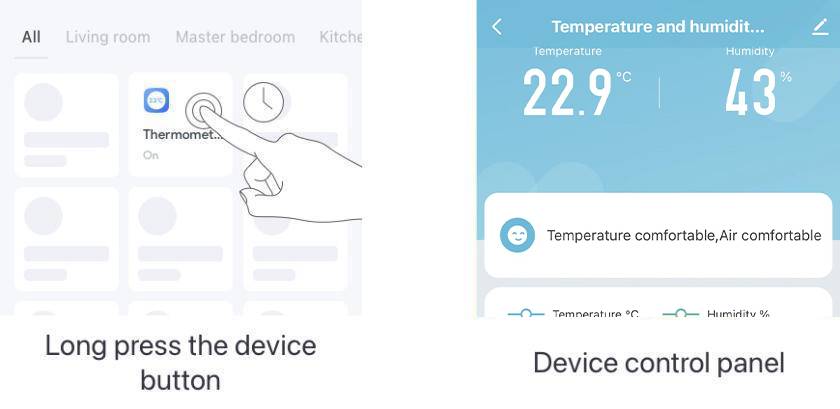

After the thermometer is paired, you can long press the device button on the main page of the App to inspect the thermometer status and view history data.

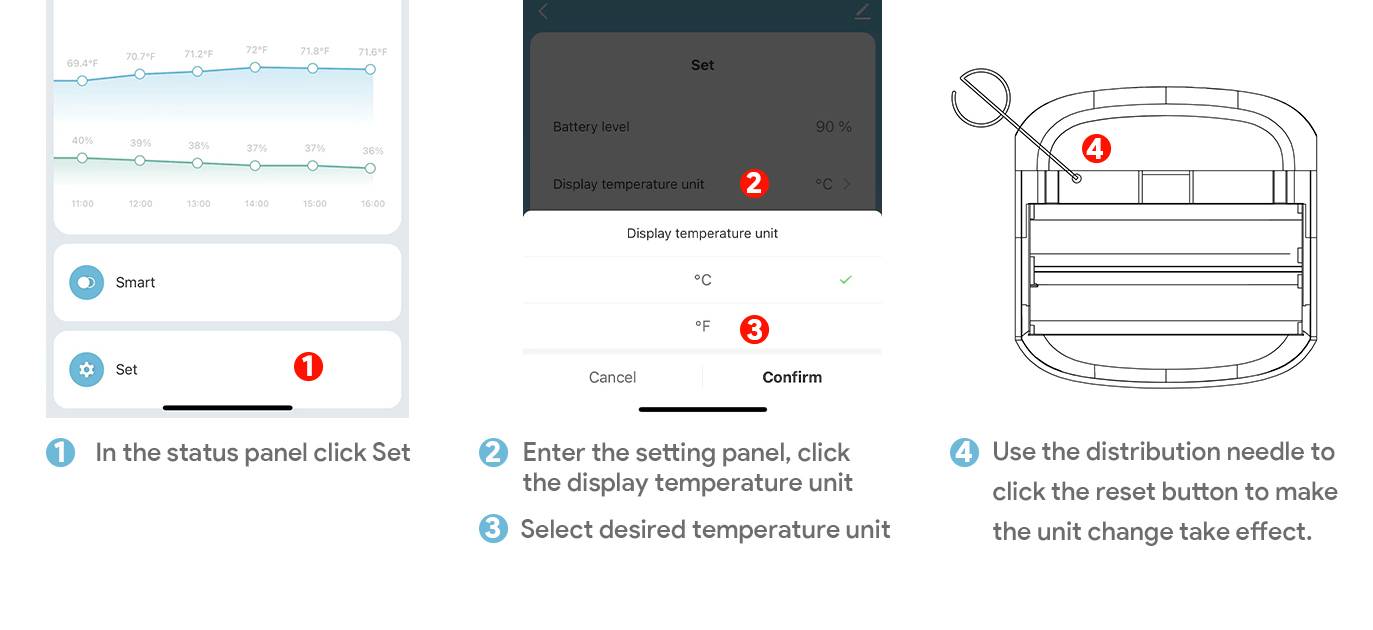

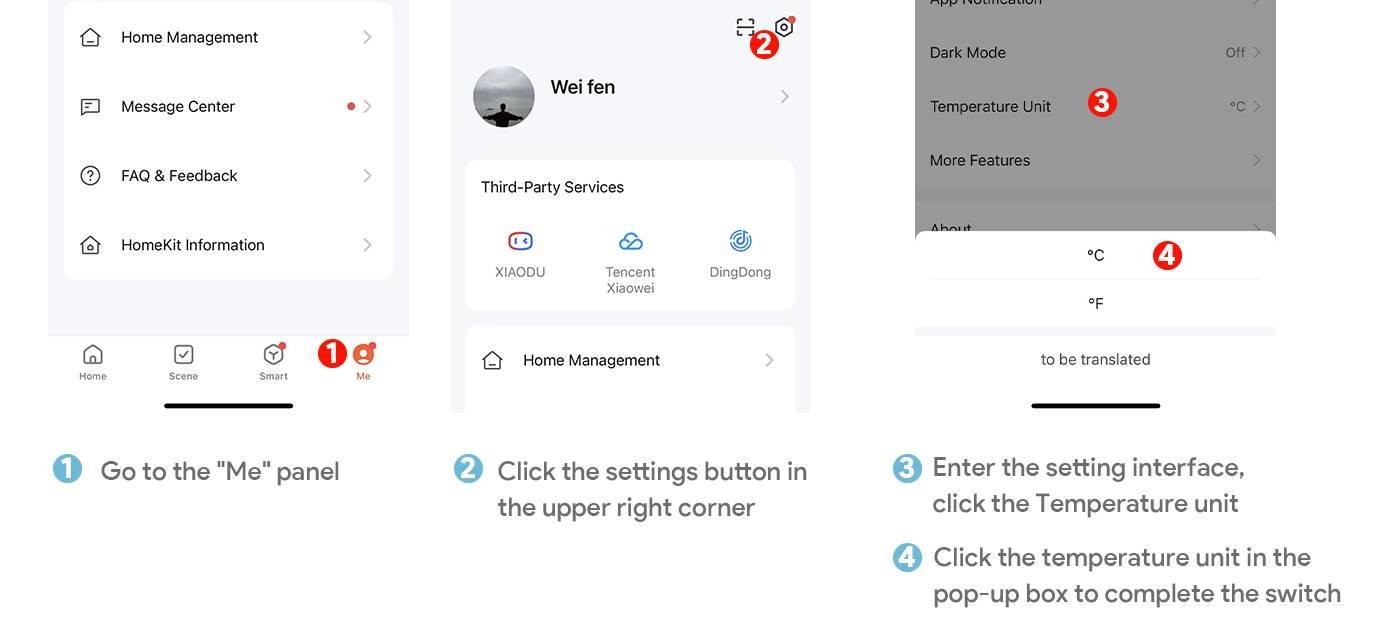

If you need to change the temperature unit of the sensor display, please enter the device panel and go to the device setting to make the change, then click the reset button with pin to make the unit change take effect.
Installation method: Use a 3M sticker to affix the product to a proper position.

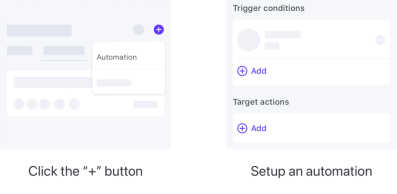

The automation function is available in the App to connect different devices. Each automation contains a series of trigger conditions and target actions. The target actions will be automatically triggered when the conditions are met.To set up an automation, click the “+” button in the upper right corner of the automation page. You can use the thermometer as a trigger condition and create target actions with other Linkoze appliances.
Dimensions: 51 x 51 x 16.5 mm
Weight: 21 g
Recommended temperature range: -9.9 °C - 60 °C/ 14℉～140℉
Recommended humidity range: 5 %RH – 95 %RH
Wireless protocol: Zigbee 3.0
Working voltage: DC 3V
Battery type: AAA
